Miniaturized SMD packaged in low profile and lightweight.

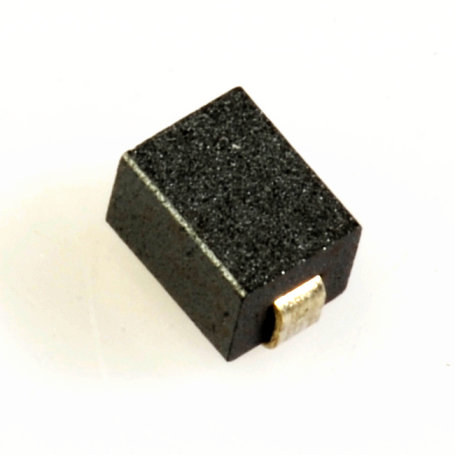

Wire wound chip Type
| Product Number | Dimensions(mm) | Inductance Range | Inductance Range(uH) | Rdc Range(Ω) | Rated Current(A) | Leakage lnductance Range | |
|
1.9x0.70x0.66 | 1.0nH~220nH | - | 0.045~4.0 | 0.05~1.36 | - | |
|
1.8x1.12x1.02 | 1.6nH~560nH | - | 0.03~4.70 | 0.09~0.70 | - | |
|
2.35x1.73x1.52 | 2.7nH~4.7nH | - | 0.06~6.40 | 0.09~0.80 | - | |
|
2.92x2.79x2.10 | 10nH~15uH | - | 0.08~11.0 | 0.10~1.0 | - | |
|
4.95x3.81x3.43 | 1.0nH~33nH | - | 1.2~13.5 | 0.145~0.48 | - | |
|
1.80x1.20x1.10 | 0.047uH~10uH | - | 0.075~4.8 | 0.3~1.5 | - | |
|
1.90x1.10x1.05 | 2.2uH~22uH | - | 0.56~3.61 | 0.20~0.6 | - | |
|
1.80x1.20x1.00 | - | 0.068uH~47uH | - | 0.27~11.2 | 0.10~0.92 | |
|
2.40x1.72x1.52 | 0.078uH~47uH | - | 0.06~14.5 | 0.18~2.0 | - | |
|
2.40x1.72x1.52 | 1.0uH~100uH | - | 0.1~9.0 | 0.07~0.8 | - | |
|
2.99x2.50x2.20 | 0.9uH~10uH | - | 0.10~0.48 | 0.45~1.4 | - | |
|
3.70x2.90x2.60 | 0.47uH~680uH | - | 0.07~28 | 0.065~1.8 | - | |
|
4.0x3.0x2.54 | 30~47 | - | 0.6m | - | - | |
|
8.5x3.1x2.54 | 60~90 | - | 0.9m | - | - |
