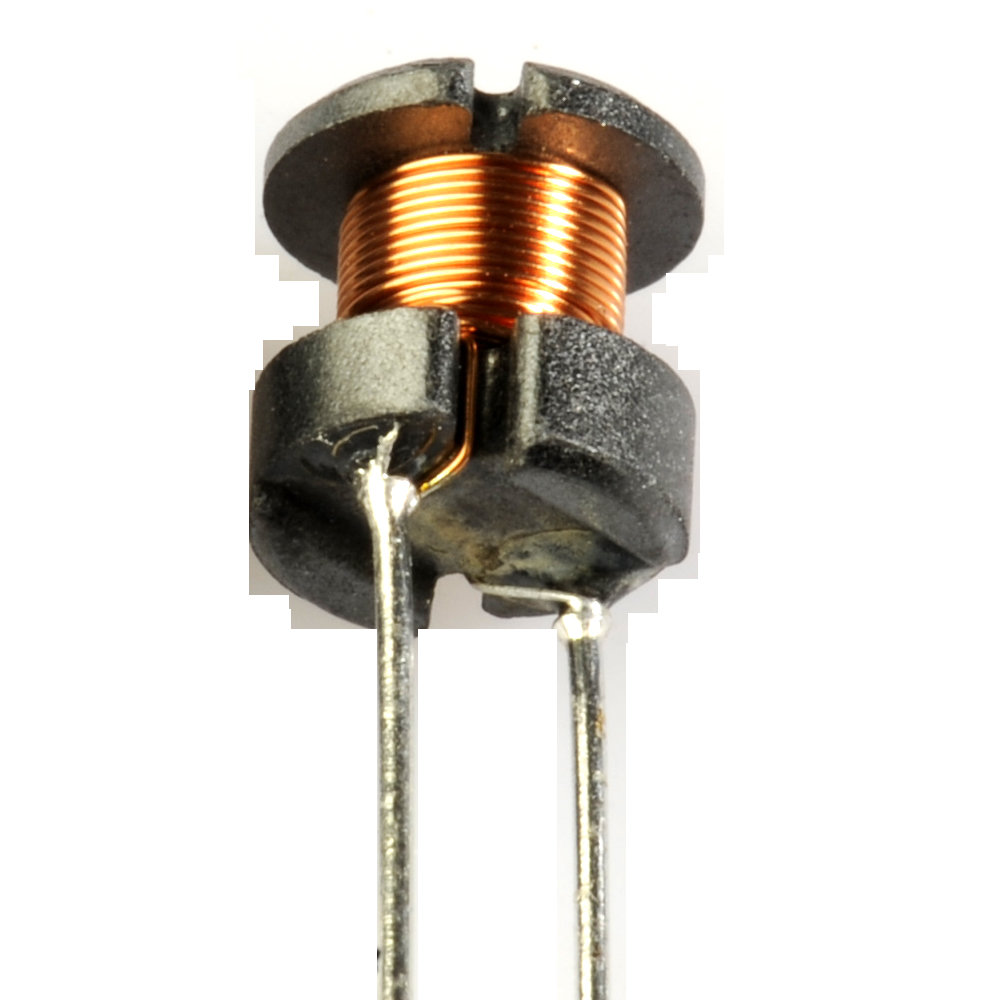

Ferrite DIP Type

Low DC resistance and high current handlingcapacities, making them ideal for power supply line applications.

Product Number Dimensions(mm) Inductance Range(uH) Rdc Range(Ω) Rated Current(A)

MCD-855C

7.8x6.5 10~10mH 70m~55.7 0.081~2.5

MCD-875C

7.8x8.0 3.3~10mH 14m~33 0.084~6.2

MCD-895C

7.8x9.5 10~47mH 40m~96.4 0.038~2.7

MCD-110C

10.0x10.5 10~1000 22m~1.7 0.53~5.3

MCD-0608

7.8x8.5 2.2~1500 16m~4.5 0.18~7.0

MCD-0808

10.0x9.5 10~4700 44m~14.8 0.25~4.0

MCD-0810

10.5x10.5 1.2~2200 7.7m~3.9 0.27~15

MCD-0912

11.0x12.5 22~1000 50m~1.70 0.53~4.5

MCD-1012

12.0x12.5 4.7~1000 15m~1.50 0.65~9.0

MCD-1216

15.0x16.5 10~4000 19m~3.73 0.49~10.0

MCD-1415

16.5x15.5 10~1000 17m~0.75 1.4~14.0

MCD-1618

19.0x18.5 22~1000 25m~0.73 2.5~14.0

MCD-0406S

5.0x7.0 1.0~5600 0.0126~32 0.07~5.2

MCD-0406S-SERIES(U)

5.5x8.0 1.0~5600 0.0126~32 0.07~5.2

MCD-0608S

7.8x8.5 1.0~3300 0.0115~10.8 0.09~8.0

MCD-0608S-SERIES(U)

8.0x10.0 1.0~4700 0.0115~18.5 0.07~8.0

MCD-0808S

10.0x9.5 1.0~4700 0.0105~14.8 0.25~11.0

MCD-0808S-SERIES(U)

10.0x10.5 1.0~4700 0.0105~14.8 0.25~11.0

MCD-0810S

10.5x12.5 1.0~8400 0.0066~19 0.18~18.0

MCD-0810S-SERIES(U)

10.5x12.5 1.0~47000 0.0066~100 0.06~18.0

MCD-0912S

11x12.5 2.2~820 0.0095~1.3 0.59~7.0

MCD-0912S-SERIES(U)

11.5x14.5 10~8400 0.028~13.6 0.14~6.5

MCD-1012S

12.0x12.5 1.4~4700 0.0048~6.4 0.32~17.0

MCD-1012S-SERIES(U)

13.0x14.5 1.4~4700 0.0048~6.4 0.32~17.0
